Implementing a Custom HashMap in Java
Introduction
HashMap is a widely used data structure for performing insertion, retrieval, and deletion operations in almost O(1) time complexity. Due to its simplicity, it is extensively Used. Today, we'll take a closer look at how HashMap works and then make our own HashMap.
Understanding HashMap in Java
A HashMap is a key-value pair data structure that performs operations such as insertion, deletion, and retrieval in almost O(1) time complexity. In a HashMap, each key must be unique. If the same element is encountered, it is deleted and then reinserted. For handling duplicate data, we can use frequency pairs. HashMap can store various types of data of different types
We can also perform operations on our own datatypes in Hashmap using generics
Some Frequently use Built-in Functions of Hashmap
put: Used to insert a value into the hashmap.remove: Used to remove an element from the hashmap.get: Used to retrieve an element from the hashmap.clear: Clears the entire hashmap.clone: Creates a copy of the elements in the hashmap.size: Returns the size of the hashmap.
import java.util.HashMap;
public class HashMap {
public static void main(String[] args) {
HashMap<String,Integer> Data=new HashMap<>();
//Adding Values
Data.put("Apple",30);
Data.put("Mango",10);
System.out.println(Data); // {Apple=30, Mango=10}
Data.put("Banana",20);
System.out.println(Data); // {Apple=30, Mango=10, Banana=20}
//Updating Values
Data.put("Apple",40);
System.out.println(Data); // {Apple=40, Mango=10, Banana=20}
//Removing Values
Data.remove("Banana");
System.out.println(Data); // {Mango=10, Apple=40}
// Clones HashMap
System.out.println(Data.clone()); // {Mango=10, Apple=40}
// Returns Size of the HashMap
System.out.println(Data.size()); // 2
//Checking the Values and Keys
if(Data.containsKey("Mango")){
System.out.println("Present");
}
else{
System.out.println("Not Present");
}
// Clears the hashmap
Data.clear();
System.out.println(Data); // {}
}
}
Understanding How HashMap Works
Assumptions
We are hard-coding the array length to comprehend the load factor
The load factor is currently set to 2. However, it might be adjusted in the future
Working of HashMap
Initially, we hard-coded the array size as 4, leading to the creation of a computer memory array of size 4.
Null is initialized at each position in the hashmap.
During the insertion of values into the hashmap, the value passes through the hash function, which returns an appropriate index.
A new linked list is created, and the value is inserted as the head of the linked list.
As values are inserted, if the same index is encountered, a new node is created in the linked list at that position, and the value is inserted.
When the limit exceeds the load factor, rehashing occurs, and all values are rearranged.
Understanding each step of implementation
Initializing HashMap
Initializing HashMap involves creating an array of size 4 and initializing each index with a linked list of null values.
public HashMap() { this.N = 4; this.buckets = new LinkedList[4]; for(int i=0; i<4; i++) { this.buckets[i] = new LinkedList<>(); } }Hashing Function

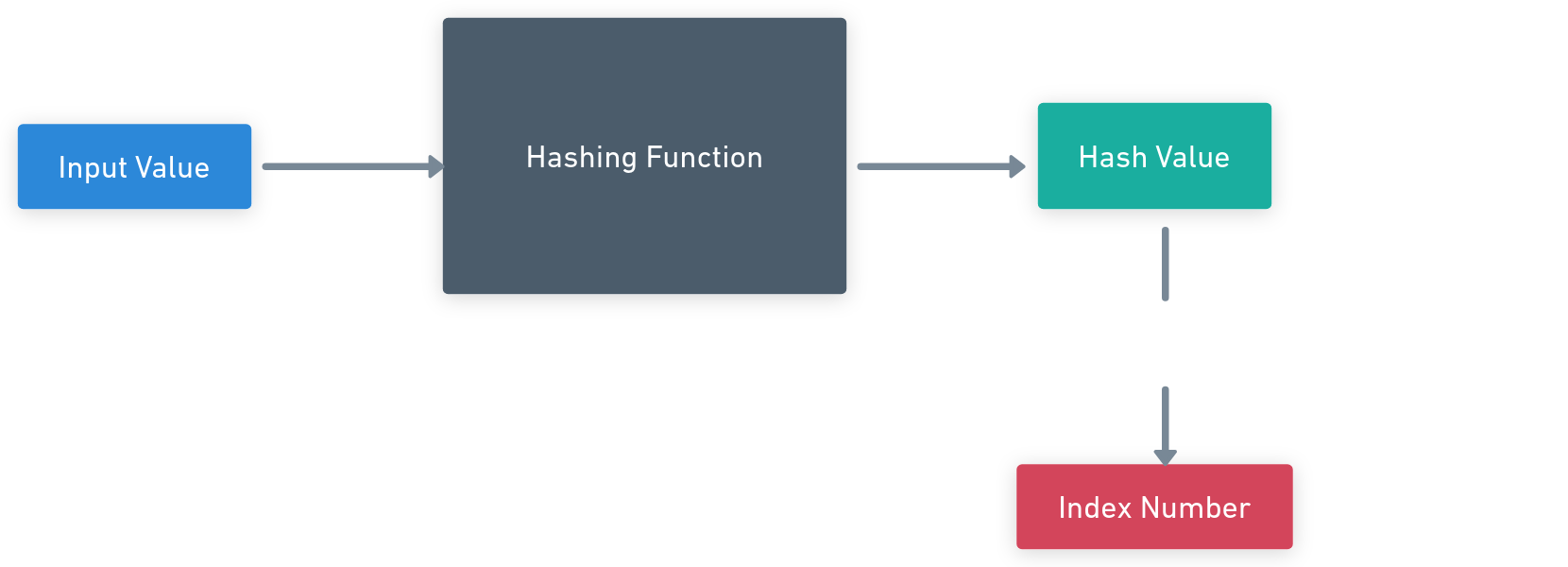

The hashing function will transform the input value into a hash value and then further break it down into an index number compatible with the size of the array.
Here, we consider the absolute value of the hashing to handle potential negative hash values. We then divide it by N, which represents the length of the bucket, and utilize the internal Java
hashcode()function to generate a hash valueprivate int hashFunction(K key) { int bi = key.hashCode(); return Math.abs(bi) % N; }Searching in Linked List
Before inserting, we check whether the value corresponding to the bucket index is present in the linked list, which we further utilize in our functions. We will return -1 if is not present in the linked List
private int searchInLL(K key, int bi) { LinkedList<Node> ll = buckets[bi]; for(int i=0; i<ll.size(); i++) { if(ll.get(i).key == key) { return i; } } return -1; }put Method
In the
putfunction, first, we generate the hash value of the element we are inserting. Later, we check whether it is present in the hashmap. If it is not present, we add the value to the hashmap. If it is already present, we update the data of the existing value.If the Load factor exceeds 2.0 then rehash the whole Array
public void put(K key, V value) { int bi = hashFunction(key); int di = searchInLL(key, bi); if (di == -1) { // Add a new node with the key-value pair to the linked list at the bucket index buckets[bi].add(new Node(key, value)); // Increment the total number of key-value pairs in the hash table n++; } else { // Update the value associated with the existing key Node node = buckets[bi].get(di); node.value = value; } // Calculate the load factor (lambda) of the hash table double lambda = (double) n / N; if (lambda > 2.0) { rehash(); } }get Method
For the
getfunction, we calculate the hash value of the value to be retrieved and check if it is present in the hashmap. If it is present, we return the value; otherwise, we return -1public V get(K key) { int bi = hashFunction(key); int di = searchInLL(key, bi); if(di == -1) { // key doesn't exist return null; } else { // key exists Node node = buckets[bi].get(di); // The get method of the LinkedList class, not the HashMap return node.value; } }remove Method
In the
removemethod, first, we calculate the hash value of the element. If it is present, we remove it, decrement the length of the bucket value, and if it is not present, we return -1.public V remove(K key) { // It returns the V (value type in Node) int bi = hashFunction(key); int di = searchInLL(key, bi); if(di == -1) { // key doesn't exist return null; } else { // key exists Node node = buckets[bi].remove(di); // we are using the remove method of a linked list n--; return node.value; } }containsKey Method
Here, we search in the linked list and return a boolean value indicating whether the element is present or not.
public boolean containsKey(K key) { int bi = hashFunction(key); int di = searchInLL(key, bi); return di!=-1; }keySet Method
To retrieve all the keys of a hashmap, we create an ArrayList and iterate through every index of the array. We then iterate over each node of the linked list and add the key values to the ArrayList.
public ArrayList<K> keySet() { ArrayList<K> keys = new ArrayList<>(); for (LinkedList<Node> ll : buckets) { // Iterate over Linked lists in all the Nodes for (Node node : ll) { // Iterate Over each linked List in particular node and store the node value in the key keys.add(node.key); } } return keys; }isEmpty Method
Here, we return a boolean value indicating whether the hashmap is empty or not
public boolean isEmpty() { return n == 0; // Returns true if the Hashmap is empty or false if Hashmap is full }Rehash Function
In the rehash function, we take all the values in the array and insert them into a new array of size twice that of the original one. Subsequently, we hash them again and rearrange them
private void rehash() { LinkedList<Node>[] oldBucket = buckets; buckets = new LinkedList[N*2]; for(int i=0; i<N*2; i++) { buckets[i] = new LinkedList<>(); } for (LinkedList<Node> newBucket : oldBucket) { // Inserting the old Bucket items into new Bucket Linked List Items for (Node node : newBucket) { // Inserting Node values (Series of LL) into newBucket Nodes put(node.key, node.value); } } }

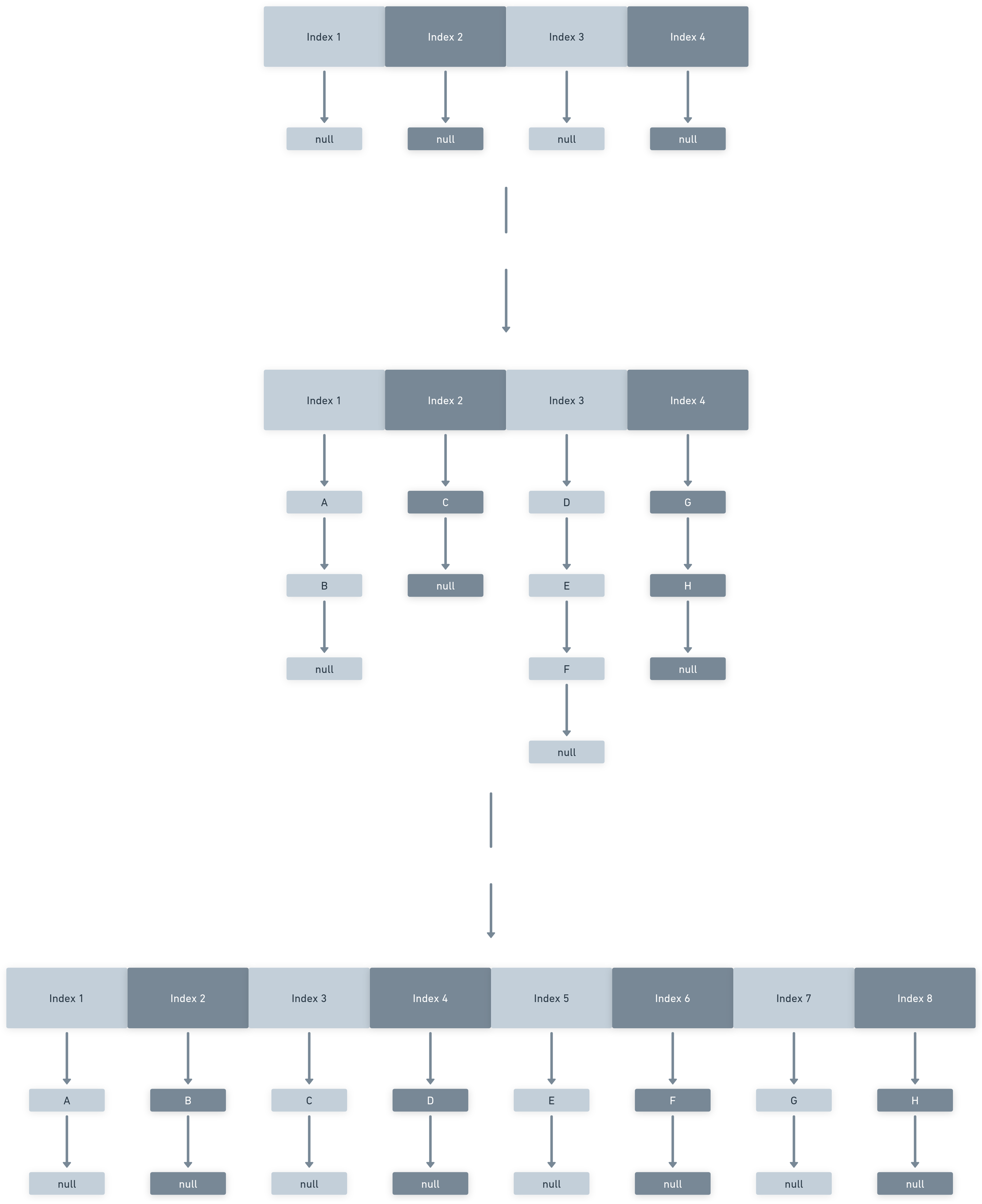

Visualizing how a HashMap works
Here, we insert the eight character values into the HashMap, mapping them to their respective indexes. Subsequently, we perform rehashing, and the result is shown below, where the length is doubled, and the elements are rearranged
I believe you now understand why HashMap operations have O(1) time complexity. It directly accesses data based on its hash value, avoiding the need for traversal as seen in other data structures.
Final thoughts
HashMap stands as a crucial data structure for efficient data retrieval, deletion, and updating. Its significance extends to various other data structures, enabling a wide range of operations.
If you've found this blog insightful, continue exploring similar content on my profile. I've also provided valuable resources and code with test cases below for a deeper understanding of the internal workings of HashMap.
Resources
The code, along with test cases, can be found here
Oracle's HashMap Documentation for official and detailed information on Java's HashMap implementation.
A Youtube playlist by Arpit Bhayani on hash Table Internals
